AI Agent学习实践笔记(二) -- Agent框架:smolagents

HuggingFace AI Agents Course学习笔记,unit2 -- Agent框架

AI Agent学习实践笔记(二) -- Agent框架:smolagents

1. 引言

上一篇:AI Agent学习实践笔记(一) – Agents介绍 进行了智能体的基本介绍,间隔比较久了,继续后续的unit学习。

AI发展日新月异,后续还有不少内容可以继续学习,如 mcp-course,加入TODO List。

2. Agent框架介绍

Agentic框架(Agentic Framework)不一定必须,如果只是简单的工作流,则预定义的工作流可能就够了。相对于使用agent框架,开发者能够拥有完全的系统控制权,不需要带着框架的抽象来理解系统。而随着工作流越来越复杂,这些框架的抽象则能带来很大的帮助。

会介绍的几种agent框架:

  • smolagents,Hugging Face开发的轻量级框架
  • Llama-Index,端到端工具,处理上下文增强的AI agent
  • LangGraph,允许有状态地对agent进行编排

3. smolagents 框架

本节中使用smolagents库来构建AI agent,构建的agent将具备这些功能:搜索数据、执行代码、网页交互,并能学习到如何将多个agents结合起来创建一个更为强大的系统。

本节包含的内容简介:

  • CodeAgents(代码智能体),smolagents里主要的智能体类型,生成Python代码而不是JSON文本来执行操作(使用代码调用工作更高效)。
  • ToolCallingAgents(工具调用智能体),smolagents支持的第二种智能体类型,依赖于系统必须解析和解释以执行操作的 JSON/文本块
  • Retrieval agents(检索智能体),使模型能访问知识库,从而可以从多个来源搜索、综合和检索信息。
    • 它们利用向量存储(vector stores)进行高效检索,并实现 检索增强生成(Retrieval-Augmented Generation,RAG 模式。
    • 这些智能体特别适用于将网络搜索与自定义知识库集成,同时通过记忆系统维持对话上下文。
  • 工具
    • smolagents 中,工具是使用 @tool装饰器(decorator) 包装Python函数Tool类定义的
  • 多智能体系统
  • 视觉和浏览器智能体
    • 视觉智能体(Vision agents)通过整合 视觉-语言模型(Vision-Language Models,VLM 扩展了传统智能体的能力,使其能够处理和解释视觉信息。

3.1. 构建使用代码的智能体

CodeAgent(代码智能体)是smolagents中的默认智能体类型,它们生成Python工具调用来执行操作,实现高效、表达力强且准确的操作表示。

  • smolagents 提供了一个轻量级框架,用约 1,000 行代码实现构建代码智能体(code agents)。

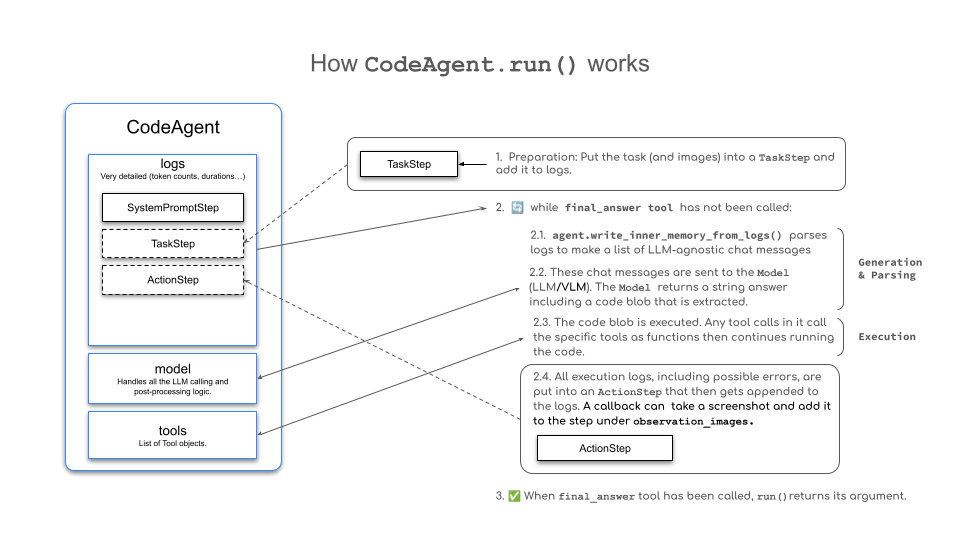

代码智能体工作流程如下:
smolagents_codeagent_process

说明:

  • smolagents 中智能体的主要抽象是 MultiStepAgent
  • CodeAgent通过一系列步骤执行操作,将 现有变量知识 整合到智能体的上下文中,这些内容保存在执行日志中。
    • 1、其中 系统提示 存储在 SystemPromptStep 中,用户查询 记录在 TaskStep
    • 2、而后执行以下循环(调用到final_answer tool才结束循环):
      • 2.1 将智能体的日志写入大语言模型可读的聊天消息列表中
      • 2.2 这些消息发送给 模型(比如LLM/VLM),模型返回一个字符串结果,其中包含已经被提取出来的代码对象块(code blob
      • 2.3 执行代码对象块,其中的任何工具调用通过函数调用工具后,继续执行后续代码
      • 2.4 将所有执行结果日志记录到 ActionStep

下面进行简单demo实验。

目标:使用smolagents为派对选择播放列表。

  • 构建一个可以使用DuckDuckGo(一个互联网搜索引擎)来搜索网络的智能体

3.1.1. 安装smolagents框架

安装:pip install smolagents -U

1
2
3
4
5
6
7
8
9
10
11
12
13
# 创建虚拟环境
[MacOS-xd@qxd ➜ ~ ]$ python3 -m venv ./env
# 后续使用先加载虚拟环境: source /Users/xd/env/bin/activate
[MacOS-xd@qxd ➜ ~ ]$ source ./env/bin/activate
(env) [MacOS-xd@qxd ➜ ~ ]$
# pip安装 smolagents 包
(env) [MacOS-xd@qxd ➜ ~ ]$ pip install smolagents -U
Collecting smolagents
  Downloading smolagents-1.22.0-py3-none-any.whl.metadata (16 kB)
Collecting huggingface-hub>=0.31.2 (from smolagents)
...
Installing collected packages: urllib3, typing-extensions, tqdm, pyyaml, python-dotenv, pygments, pillow, packaging, mdurl, MarkupSafe, idna, hf-xet, fsspec, filelock, charset_normalizer, certifi, requests, markdown-it-py, jinja2, rich, huggingface-hub, smolagents
Successfully installed MarkupSafe-3.0.3 certifi-2025.8.3 charset_normalizer-3.4.3 filelock-3.19.1 fsspec-2025.9.0 hf-xet-1.1.10 huggingface-hub-0.35.3 idna-3.10 jinja2-3.1.6 markdown-it-py-4.0.0 mdurl-0.1.2 packaging-25.0 pillow-11.3.0 pygments-2.19.2 python-dotenv-1.1.1 pyyaml-6.0.3 requests-2.32.5 rich-14.1.0 smolagents-1.22.0 tqdm-4.67.1 typing-extensions-4.15.0 urllib3-2.5.0

3.1.2. 编写demo代码并解决依赖

demo内容很简单:

  • 其中使用InferenceClientModel来访问模型,它提供对Hugging Face的无服务器推理模型API的访问(进一步了解可见:Inference Providers
1
2
3
4
5
6
# demo.py
from smolagents import CodeAgent, DuckDuckGoSearchTool, InferenceClientModel

agent = CodeAgent(tools=[DuckDuckGoSearchTool()], model=InferenceClientModel())
# 为韦恩的派对寻找最佳音乐推荐
agent.run("Search for the best music recommendations for a party at the Wayne's mansion.")

python demo.py运行,提示少ddgs包,pip安装即可:

1
2
3
4
(env) [MacOS-xd@qxd ➜ first_demo git:(main)]$ pip install ddgs
...
Installing collected packages: brotli, socksio, sniffio, primp, lxml, hyperframe, hpack, h11, click, httpcore, h2, anyio, httpx, ddgs
Successfully installed anyio-4.11.0 brotli-1.1.0 click-8.3.0 ddgs-9.6.0 h11-0.16.0 h2-4.3.0 hpack-4.1.0 httpcore-1.0.9 httpx-0.28.1 hyperframe-6.1.0 lxml-6.0.2 primp-0.15.0 sniffio-1.3.1 socksio-1.0.0

重新运行,报错提示需要提供一个api_key,或者授权登陆Hugging Face Hub

1
2
3
4
5
6
7
8
9
10
11
12
(env) [MacOS-xd@qxd ➜ first_demo git:(main)]$ python demo.py
╭───────────────────────────── New run ────────────────────────────────────────╮
│                                                                              │
│ Search for the best music recommendations for a party at the Wayne's ma      │
│                                                                              │
╰─ InferenceClientModel - Qwen/Qwen2.5-Coder-32B-Instruct ─────────────────────╯
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━Step 1━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Error in generating model output:
You must provide an api_key to work with together API or log in with `hf auth login`.
[Step 1: Duration 2.15 seconds]
Traceback (most recent call last):
...

新增一个login.py,补充登陆hub操作(只需要调一次)

1
2
3
4
5
# login.py
from huggingface_hub import login

# 调用登陆接口
login()

运行代码,会提示输入登陆token。如果忘记,可登陆huggingface,到“Access Tokens”中重新创建一个。

1
2
3
4
5
6
7
8
9
10
11
12
13
# 登陆
(env) [MacOS-xd@qxd ➜ first_demo git:(main)]$ python login.py

    _|    _|  _|    _|    _|_|_|    _|_|_|  _|_|_|  _|      _|    _|_|_|      _|_|_|_|    _|_|      _|_|_|  _|_|_|_|
    _|    _|  _|    _|  _|        _|          _|    _|_|    _|  _|            _|        _|    _|  _|        _|
    _|_|_|_|  _|    _|  _|  _|_|  _|  _|_|    _|    _|  _|  _|  _|  _|_|      _|_|_|    _|_|_|_|  _|        _|_|_|
    _|    _|  _|    _|  _|    _|  _|    _|    _|    _|    _|_|  _|    _|      _|        _|    _|  _|        _|
    _|    _|    _|_|      _|_|_|    _|_|_|  _|_|_|  _|      _|    _|_|_|      _|        _|    _|    _|_|_|  _|_|_|_|

# 输入登陆token
Enter your token (input will not be visible):
# 输入Y确认
Add token as git credential? (Y/n) Y

3.1.3. 查看运行效果

运行时,输出会显示正在执行的工作流步骤的跟踪。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
# 运行demo(省略部分内容)
╭────────────────────────────────────── New run ──────────────────────────────────╮
│                                                                                 │
│ Search for the best music recommendations for a party at the Wayne's mansion.   │
│                                                                                 │
╰─ InferenceClientModel - Qwen/Qwen2.5-Coder-32B-Instruct ─────────────────────────
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Step 1 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
 ─ Executing parsed code: ──────────────────────────────────────────────────────────
  search_results = web_search(query="best music for a party at Wayne's mansion")
  print(search_results)
 ──────────────────────────────────────────────────────────────────────────────────
Execution logs:
## Search Results

[The 75 Best Party Songs That Will Get Everyone Dancing](https://www.gear4music.com/blog/best-party-songs/)
May 9, 2024 · So, to keep things simple, we’ve compiled the best party songs of all time, from timeless classics to contemporary hits, giving you a diverse,
family-friendly playlist that guarantees to bring a great vibe to your gathering.
...

Out: None
[Step 1: Duration 8.63 seconds| Input tokens: 2,090 | Output tokens: 81]
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Step 2 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

# 执行解析
 ─ Executing parsed code: ───────────────────────────────────────────────────────────
  # List of recommended songs for a party at Wayne's mansion
  recommended_songs = [
      "Daft Punk - One More Time",
      "Montell Jordan - This Is How We Do It",
      "Rob Base & DJ E-Z Rock - It Takes Two",
      ...
  ]
  # Print the list of recommended songs
  print(recommended_songs)
 ────────────────────────────────────────────────────────────────────────────────────
Execution logs:
['Daft Punk - One More Time', 'Montell Jordan - This Is How We Do It', 'Rob Base & DJ E-Z Rock - It Takes Two', 'Billy Idol - Dancing with Myself', 'Beastie Boys - Fight
...

Out: None
[Step 2: Duration 18.14 seconds| Input tokens: 8,099 | Output tokens: 405]
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Step 3 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
 ─ Executing parsed code: ───────────────────────────────────────────────────────────
  final_answer(recommended_songs)
 ────────────────────────────────────────────────────────────────────────────────────
Final answer: ['Daft Punk - One More Time', 'Montell Jordan - This Is How We Do It', 'Rob Base & DJ E-Z Rock - It Takes Two', 'Billy Idol - Dancing with Myself', 'Beastie
Boys - Fight for Your Right', 'PSY - Gangnam Style', 'Blondie - Heart of Glass', 'Rednex - Cotton Eye Joe', 'Miley Cyrus - Party in the U. S. A.', 'Tech N9ne - Pump Up
the Jam', 'Uptown Funk - Mark Ronson (feat. Bruno Mars)', 'Bohemian Rhapsody - Queen', 'Dancing Queen - ABBA', 'September - Earth, Wind & Fire', 'Thriller - Michael
Jackson', 'Hotel California - Eagles', "Sweet Child O' Mine - Guns N' Roses", 'Stairway to Heaven - Led Zeppelin', 'Billie Jean - Michael Jackson', 'Imagine - John
Lennon']
[Step 3: Duration 6.21 seconds| Input tokens: 14,977 | Output tokens: 477]

可看到最终agent输出了一个音乐推荐列表:Final answer: ['Daft Punk - One More Time', ...

3.1.4. 创建自定义工具

导入tool包,并使用 @tool装饰器 创建一个自定义工具,然后将其包含在tools列表中进行使用。

1
2
3
4
5
6
7
8
9
10
11
from smolagents import CodeAgent, tool, InferenceClientModel

# 使用@tool来定义工具,根据occasion传入的场合返回不同内容,场合比如casual、formal、superhero
@tool
def suggest_menu(occasion: str) -> str:
    ...

# 创建智能体,其中会使用定义好的suggest_menu工具
agent = CodeAgent(tools=[suggest_menu], model=InferenceClientModel())
# 生成formal场合下的菜单
agent.run("Prepare a formal menu for the party.")

3.1.5. 为智能体导入其他Python包

如上所示,在tools里指定了agent可以用的工具/包。若想让agent使用一些标准库或者其他包,可通过additional_authorized_imports来授权导入(默认情况下预定义列表外的导入是被阻止的)。

1
2
3
4
5
6
7
8
9
10
11
12
13
from smolagents import CodeAgent, InferenceClientModel
# 除了这里,下面还要additional_authorized_imports来授权额外的导入
import datetime

# additional_authorized_imports来允许导入 datetime 模块
agent = CodeAgent(tools=[], model=InferenceClientModel(), additional_authorized_imports=['datetime'])
agent.run(
    # 可指定多行请求内容
    """
    xxxx
    xxxx
    """
)

3.1.6. 追踪和分析agent运行

可利用Langfuse来跟踪和分析智能体的行为,Langfuse是一个开源的可观测性和分析平台,专为由大型语言模型(LLM)驱动的应用而设计。LLMOps工具。

3.2. 工具调用型智能体(ToolCallingAgent)

工具调用智能体(ToolCalling Agents)是smolagents中提供的第二种智能体类型。这类智能体利用LLM提供商的内置工具调用能力来生成JSON结构的工具调用指令(这是 OpenAIAnthropic 等主流提供商采用的标准方法)。

  • 工具调用智能体会生成 指定工具名称和参数的JSON对象,系统随后解析这些指令来执行相应工具

两种agent对比,示例:搜索餐饮服务和派对创意

1、CodeAgent会生成并运行如下代码:

1
2
3
4
5
for query in [
    "Best catering services in Gotham City",
    "Party theme ideas for superheroes"
]:
    print(web_search(f"Search for: {query}"))

2、ToolCallingAgent则会创建JSON结构,该结构随后会被用于执行工具调用:

1
2
3
4
[
    {"name": "web_search", "arguments": "Best catering services in Gotham City"},
    {"name": "web_search", "arguments": "Party theme ideas for superheroes"}
]

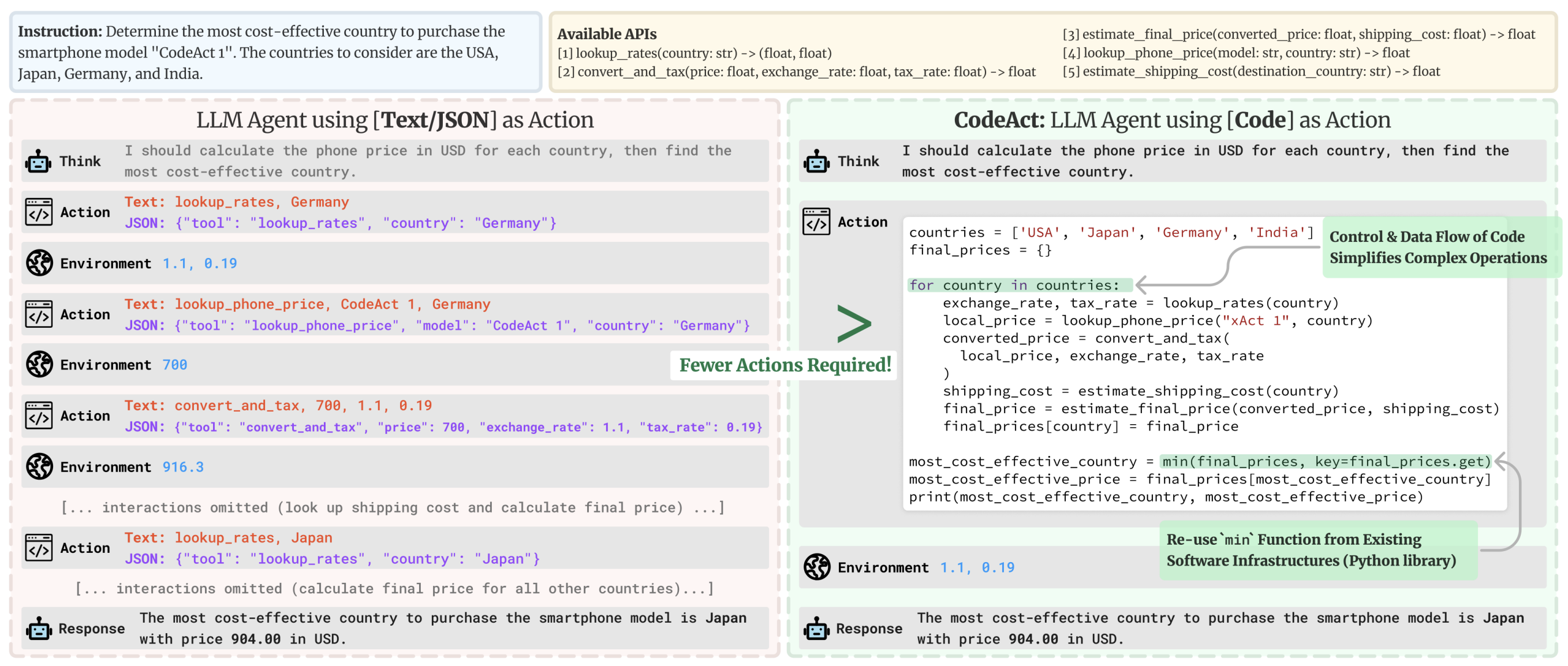

两者的交互示意图对比如下,其中文本型需要多轮交互操作:

smolagents_code_vs_json_actions

3.2.1. demo示例

相对于CodeAgent,此处导入ToolCallingAgent包,并且实例化一个ToolCallingAgent对象。

1、agent代码

1
2
3
4
5
from smolagents import ToolCallingAgent, DuckDuckGoSearchTool, InferenceClientModel

agent = ToolCallingAgent(tools=[DuckDuckGoSearchTool()], model=InferenceClientModel())

agent.run("Search for the best music recommendations for a party at the Wayne's mansion.")

2、运行,执行并查看结果

可看到Step 1中生成的Calling tool:内容就是JSON结构:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
(env) [MacOS-xd@qxd ➜ toolcalling_agent git:(main)]$ python toolcall.py
╭──────────────────────────── New run ────────────────────────────────────────────╮
│                                                                                 │
│ Search for the best music recommendations for a party at the Wayne's mansion.   │
│                                                                                 │
╰─ InferenceClientModel - Qwen/Qwen2.5-Coder-32B-Instruct ────────────────────────╯
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Step 1 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
╭───────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ Calling tool: 'web_search' with arguments: {'query': "best music recommendations for a party at Wayne's mansion"} │
╰───────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
Observations: ## Search Results
|late nights in the wayne manor | a bruce wayne rock/blues playlist](https://www.youtube.com/watch?v=oOdHCjj3jn4)
these are songs that bruce ...
[Step 1: Duration 6.08 seconds| Input tokens: 1,190 | Output tokens: 28]
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ Step 2 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
╭───────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ Calling tool: 'final_answer' with arguments: {'answer': "Based on the search results, here are some great music recommendations for a party at Wayne's mansion:\n\n1.    │
**Late Nights in the Wayne Manor | A Bruce Wayne Rock/Blues Playlist** - This playlist features songs that Bruce Wayne might listen to, which could add a unique touch
...
╰───────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
Observations: Based on the search results, here are some great music recommendations for a party at Wayne's mansion:

1. **Late Nights in the Wayne Manor | A Bruce Wayne Rock/Blues Playlist** - This playlist features songs that Bruce Wayne might listen to, which could add a unique touch
to your party.
...

Final answer: Based on the search results, here are some great music recommendations for a party at Wayne's mansion:

1. **Late Nights in the Wayne Manor | A Bruce Wayne Rock/Blues Playlist** - This playlist features songs that Bruce Wayne might listen to, which could add a unique touch
to your party.

2. **The 75 Best Party Songs That Will Get Everyone Dancing** - This list includes timeless classics and contemporary hits to keep your guests dancing all night.
...

7. **50 Songs on Every Event Planner's Playlist** - Eventbrite's list of song suggestions can help you curate the right playlist for your event.
[Step 2: Duration 4.61 seconds| Input tokens: 3,298 | Output tokens: 330]

4. 小结

从这篇笔记开篇到现在有一个月了,进度停了挺长时间,最近开始需要慢慢调整下节奏了。之前是基于英文来看相应教程内容,想着同时能增强下英语阅读,但也导致学习新内容得到的正反馈断断续续,打击了一些积极性。还是切换成中文来看了,官网上的中文版本表达也不错,顺畅了不少。

本篇先介绍并简单实验smolagents框架。

5. 参考
